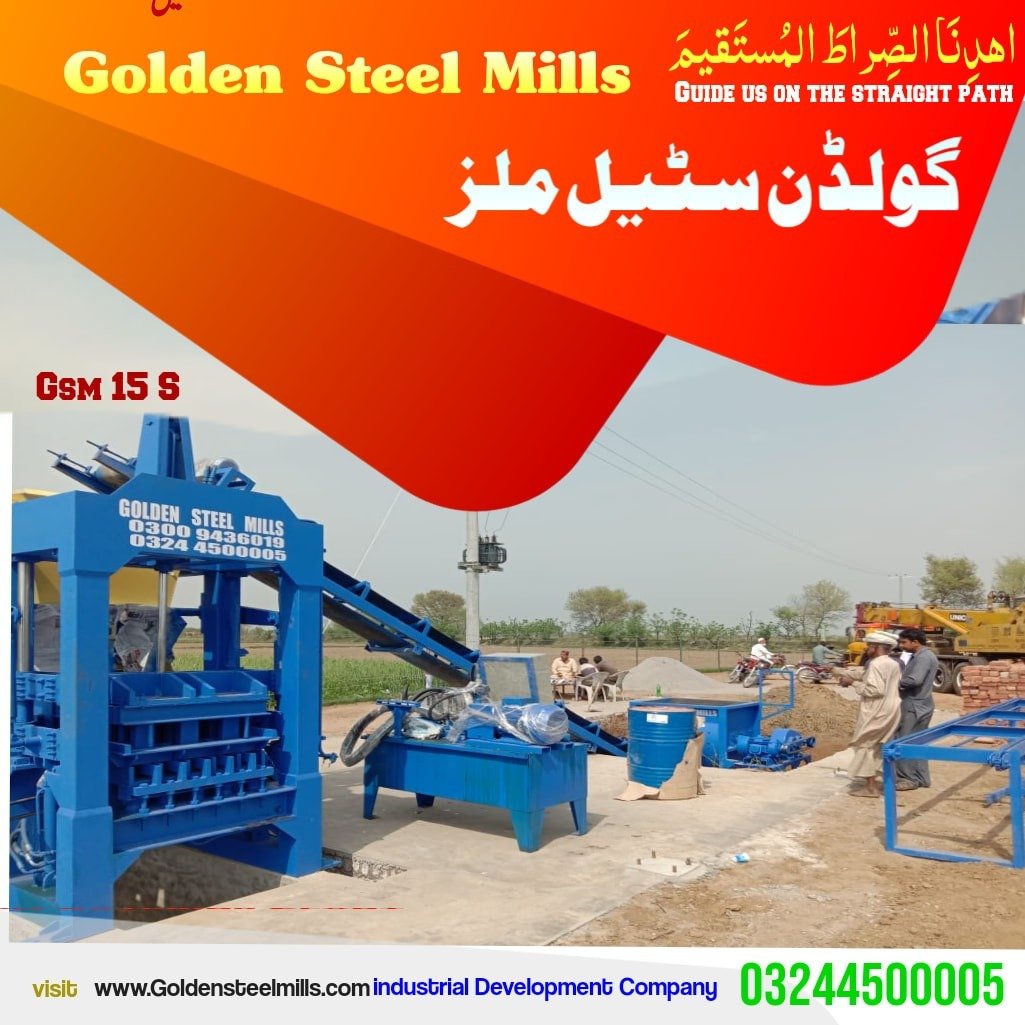

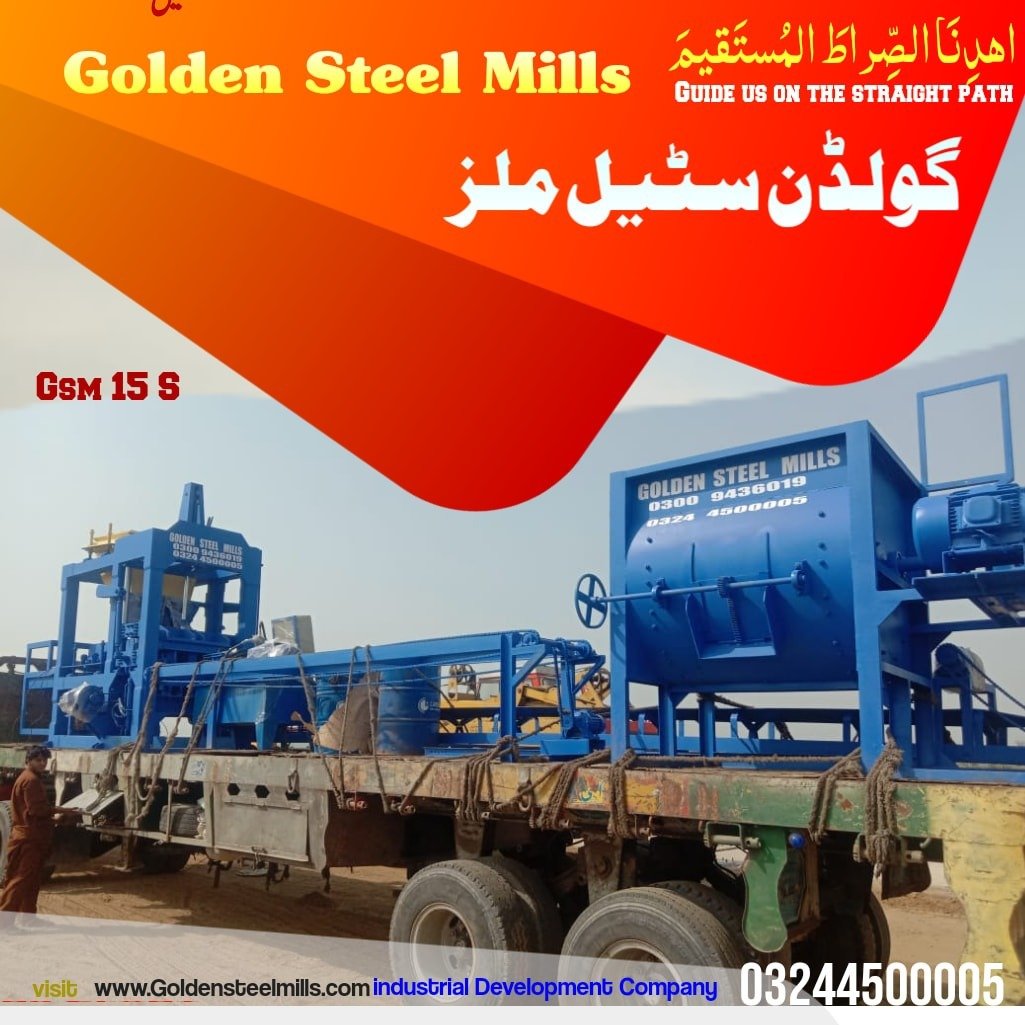

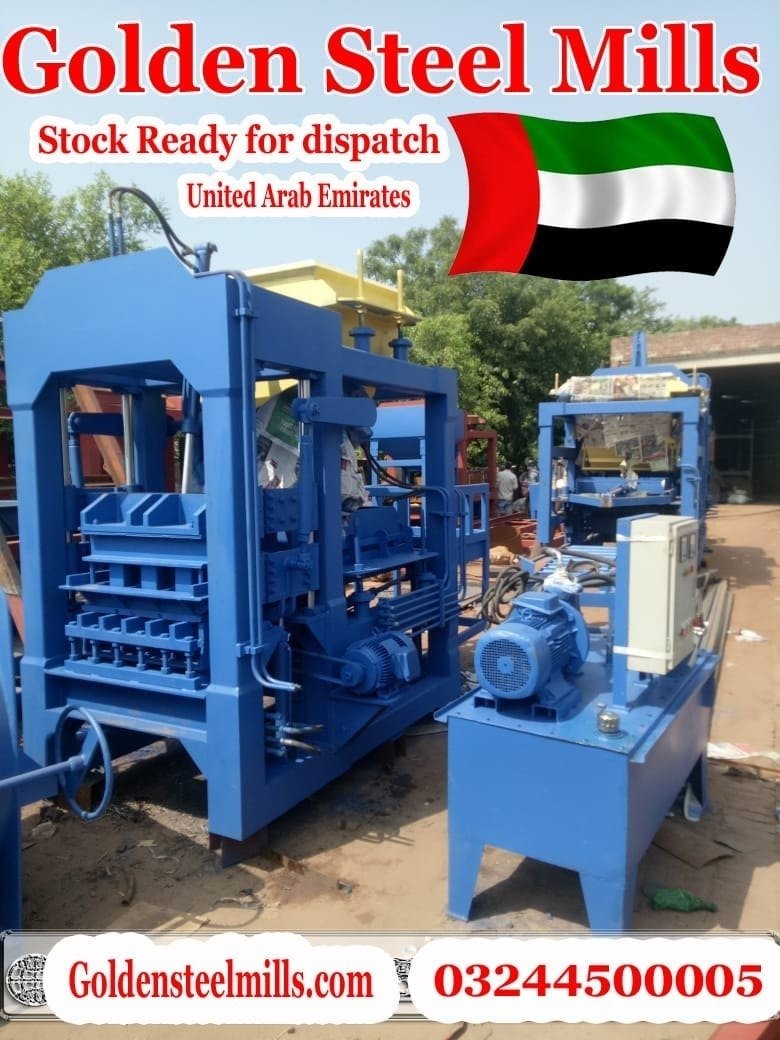

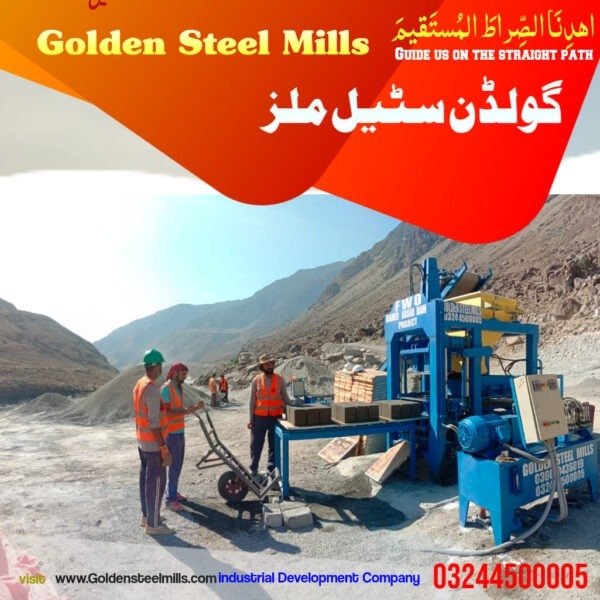

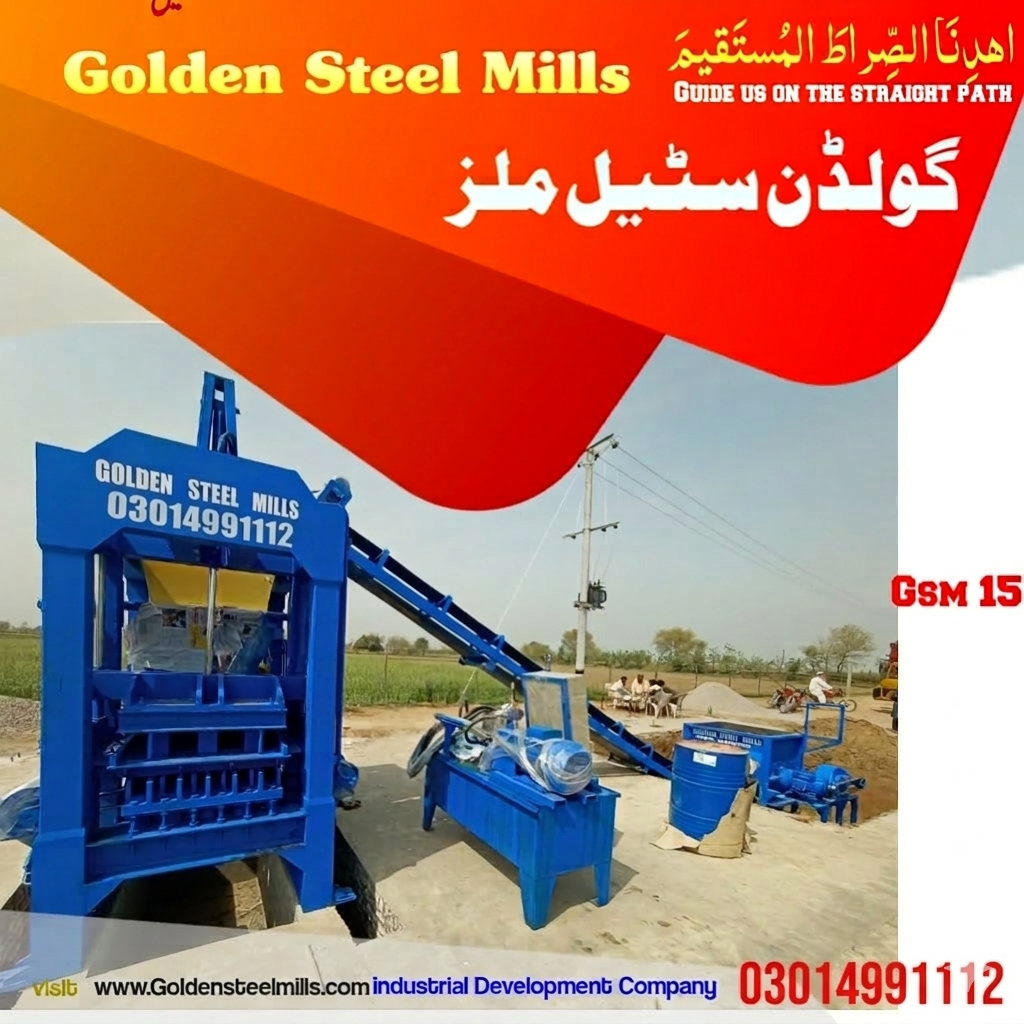

🏗️ GSM-15 Automatic Block Making Machine | Golden Steel Mills

🔹 Heavy-Duty Paver, Block, and Curb Stone Production Line – Best Seller in Pakistan

GSM-15 is a high-performance, fully automatic concrete block, paver, and curb stone making machine proudly manufactured by Golden Steel Mills Pakistan. Designed for medium- to large-scale industrial production, this machine is an ideal choice for entrepreneurs seeking to start a solid, profitable business in the construction materials industry.

This model is engineered for durability, efficiency, and high-volume output, making it one of the most reliable choices in Pakistan’s block and tile manufacturing industry.

📦 Products Manufactured with GSM-15

This machine can produce the following construction items with high precision:

✅ Tuff Tiles / Paver Tiles
✅ Solid Concrete Blocks
✅ Hollow Concrete Blocks
✅ Curbstones / Kerbstones
✅ Interlocking Bricks
✅ Cover Blocks / Garden Blocks (Optional Mold)

⚙️ Technical Specifications

Specification	Detail
Model Name	GSM-15 Automatic Plant
Brand	Golden Steel Mills
Production System	Fully Automatic + Hydraulic
Control System	Electric Panel + Hydraulic Control
Vibration System	2 × 10 HP Vibration Motors = 20 HP
Hydraulic System	20 HP High-Pressure Hydraulic Pump
Concrete Mixer Motor	15 HP
Pan Mixer Motor	10 HP
Conveyor Motor	5 HP
Total Power	Approx. 70 HP / 52 KW
Labor Required	6 Persons (Semi-skilled)
Pallet System	One pallet per cycle

🧱 Production Capacity (Per Pallet / Cycle)

Product Type	Units Per Pallet
Tuff Tile / Paver	15 Tiles
Hollow Blocks	4 Blocks
Solid Blocks	6 Blocks
Curbstones	2 Stones

🔁 Average production cycles per hour: 4 to 6 (Depending on mold & mix design)

💡 Features & Benefits

✅ High Vibration Force ensures strong compaction and durable output
✅ Low Power Consumption with powerful motors optimized for performance
✅ Advanced Control System for automatic operations and error-free cycles
✅ Durable Steel Frame with heavy-duty industrial structure
✅ Multi-Mold Support: Easy to switch between paver, block, curb molds
✅ Precision Hydraulic System ensures consistent pressure and shape
✅ High Daily Output: Ideal for commercial-scale production
✅ Training & Support Available by Golden Steel Mills team
✅ Made in Pakistan: Strong after-sale service, local spare parts

🔧 Mold Size Flexibility

Tuff Tile Molds: All designs (Zigzag, I-shape, Dumbbell, Stone Finish, etc.)
Block Molds: 4″, 6″, 8″, 9″ sizes available
Curb Stone Molds: Various road designs
Custom Molds: Available on demand

🧑‍🔧 Labor Requirement

📦 1 Machine Operators
🏗️ 2 Material Mixers
🚧3 Loader / Helper

Total: 6 Persons (Training provided on-site)

💰 Business Benefits

🔹 Start a low-risk, high-profit concrete block business
🔹 Supply for housing societies, plazas, roads, walkways
🔹 Accept government tenders and commercial projects
🔹 Export to Afghanistan, Middle East, and Africa
🔹 Fast ROI within 6–12 months of operation

🏭 Ideal For

Concrete Block Factory Setup
Paver Tile Manufacturing Unit
Housing Project Material Supply
Public Works / Construction Contractors
Investors in Construction Sector
